SilverStone GD08
- Super mini footprint design with no cables and vents on four sides
- Ample space for CPU cooling (78mm in height)
- Elevated standoff for motherboard back side components
- Includes 140mm Air Penetrator fan and support entry level liquid cooling
- Supports for two 2.5” SSD/hard drives and one 3.5” hard drive
- Mini-DTX / Mini-ITX motherboard & SFX PSU compatible
- Standard-length expansion cards support (10 inches)
Product Information
| Model No. | SST-GD08B(Black) | |
| -- | ||
| -- | ||
| -- | ||
| Material | Aluminum front panel, SECC body | |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX *1 | |
| Multimedia | -- | |
| Drive Bay | External | 5.25" x 2 (support optical drive only) |
| -- | ||
| Internal | 3.5" x8, 2.5” x2 | |
| Cooling System | Front | -- |
| Rear | 2 x 80mm fan slot | |
| Side | 1 x 120mm intake fans, 900rpm, 18dBA 1 x 120mm fan slot |
|
| Top | oversized vents | |
| Bottom | 2 x 120mm intake fans, 900rpm, 18dBA (backwards compatible with 1 x 120mm fan + 3 x 80mm fans, or 6 x 60mm fans) |
|
| Internal | -- | |
| Expansion Slot | 7+1 | |
| Front I/O Port | USB 3.0 x 2 audio x 1 MIC x 1 |
|
| Power Supply | Support standard PS2(ATX) up to 220mm, recommend depth is under 180mm *2 | |
| Operating system support | -- | |
| Expansion Card | Support graphic cards up to 13.6 inches, width restriction-5.25" | |
| Limitation of CPU cooler | 138mm | |
| Limitation of PSU | 220mm | |
| Net Weight | 7kg | |

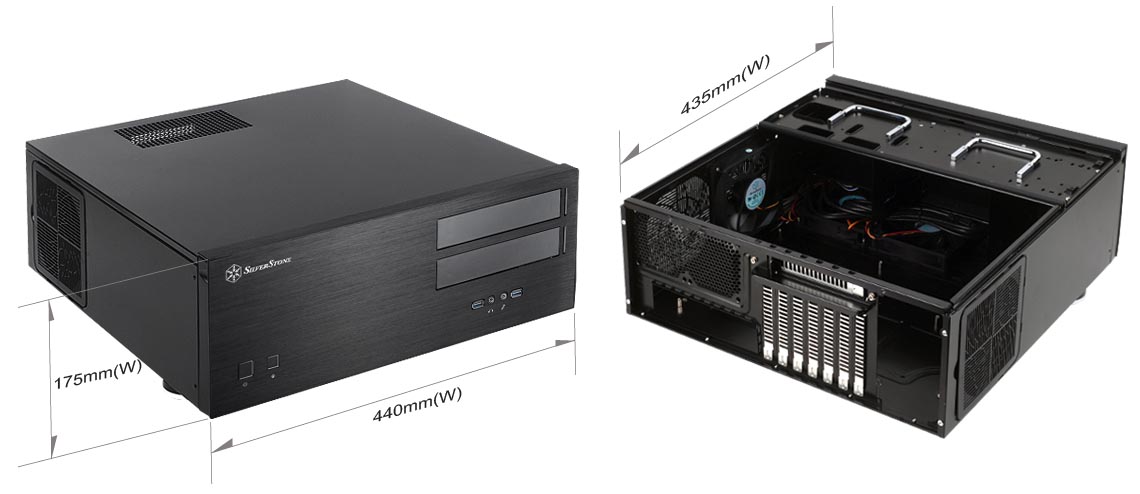

| Dimension | 440mm(W) x 175mm(H) x 425mm(D), 32.7 liters | |
| Extra | Support Kensington lock | |
| Support VESA Mount | -- | |
| Remark |
| *1: Motherboard size will affect the size and amount of fans that can be fitted in the bottom panel. Please refer to manual for details. *2: With optical drive installed, the deepest PSU recommended is 180mm. |

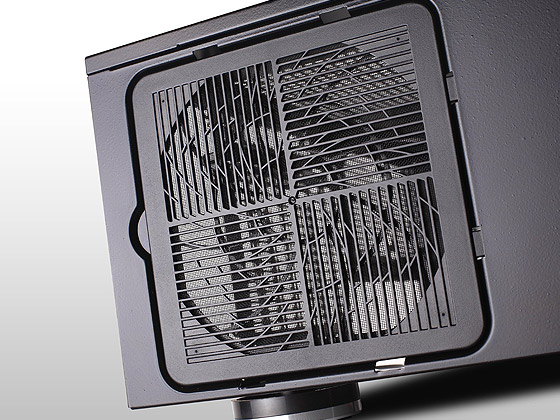

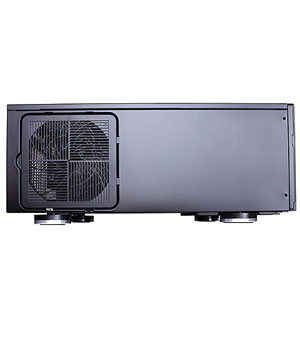

Removable fan filter on the left side
Removable fan filter on the right side

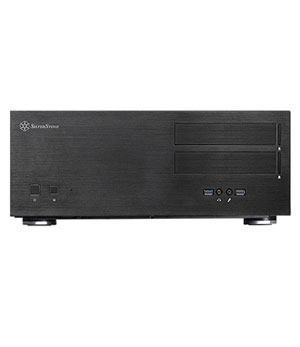

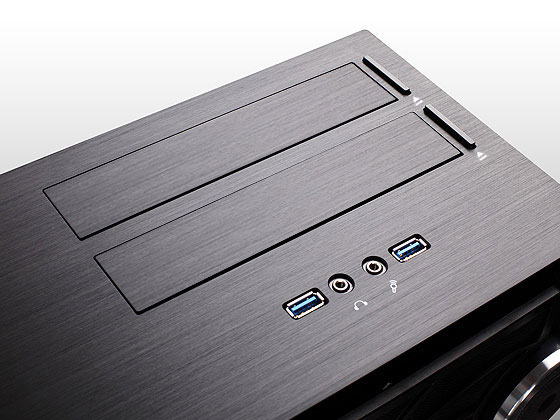

2 x USB 3.0, front I/O and optical drive

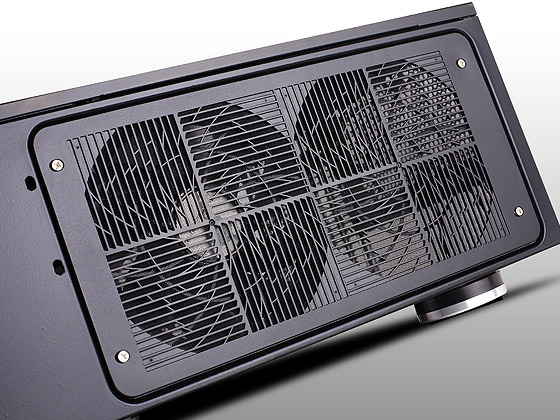

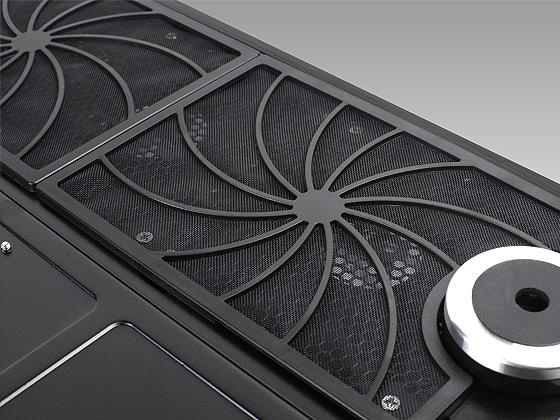

Removable fan filter at the bottom of the case

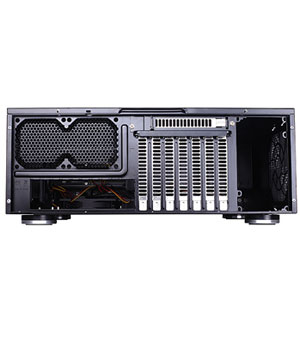

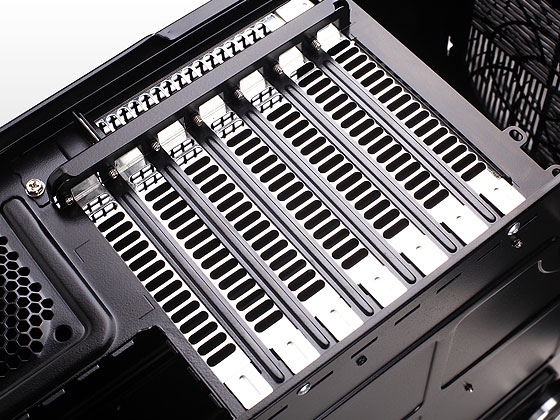

7 expansion slots (aero slots)

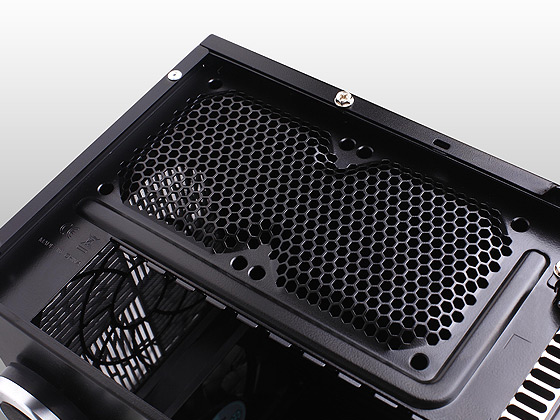

2 x 80mm fan slot at the rear
