SilverStone NT06-PRO
- Superior silence and performance
- Six soldered heat-pipes, copper base and aluminum fins ensuring the best thermal conducting efficiency
- Improved air pressure design and fan mounting system
- Includes compact 120mm PWM fan for excellent cooling and low noise
- Intel Socket LGA775/1150/1155/1156/1366/2011 and AMD Socket AM2/AM3/FM1/FM2 compatible
Product Information
| Model No. | SST-NT06-PRO |
| Material | Copper base, heat pipes with aluminum fins |
| Application | Intel Socket LGA775/1150/1155/1156/1366/2011 AMD Socket AM2/AM3/FM1/FM2 |
| Heat Pipe Type | Ø6mm-6pcs heat-pipe |
| Cooling System | 120mm x 120mm x 20mm fan |
| Bearing | Sleeve Bearing |
| CPU TDP | Fanless :65W 1 x 12020mm Fan:95W 1 x 12025mm Fan:130W 12020 + 12025 mm Fan:150W |
| Net Weight | 700g (with fan) |
| Voltage Rating (V) | 12V |
| Start Voltage (V) | ≤9V |
| Air Flow (CFM) | 33.623~73.969CFM |
| Speed (R.P.M.) | 1000~2200RPM with PWM |
| Life Expectance (hrs) | 30,000 hours |
| Dimension | 140mm (W) x 82mm (H) x 139mm (D) |
| Remark |
| *To use on CPUs with TDP greater than 65W, a case with efficient airflow is required. |

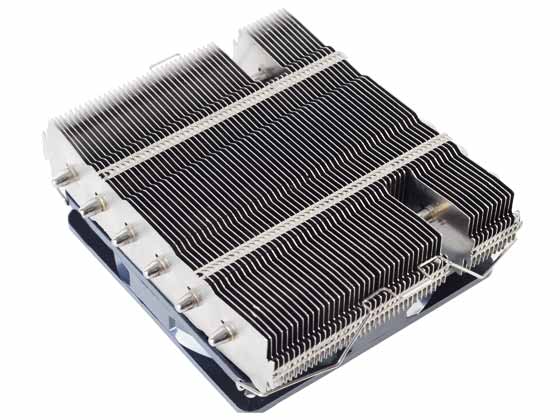

Top 3/4 view

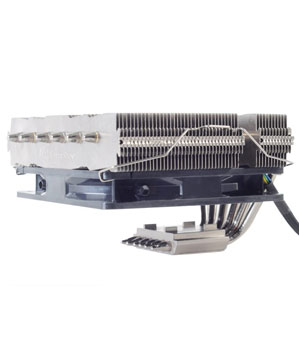

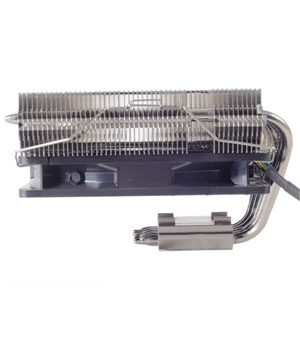

Aluminum fins with included 120mm x 20mm fan

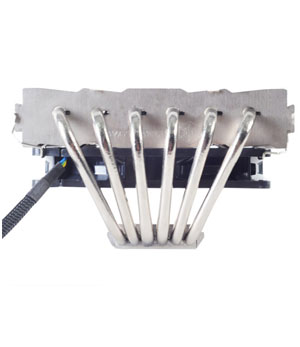

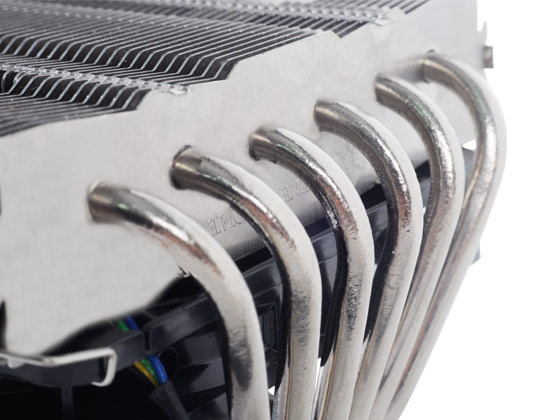

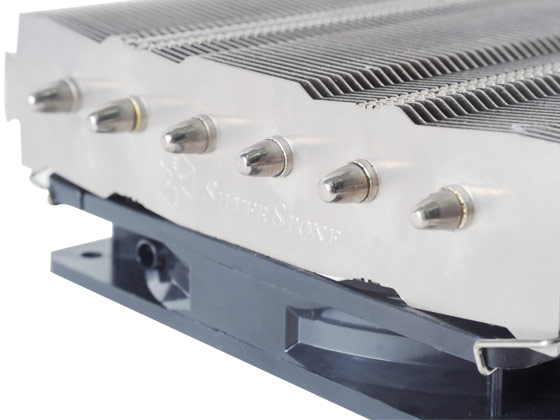

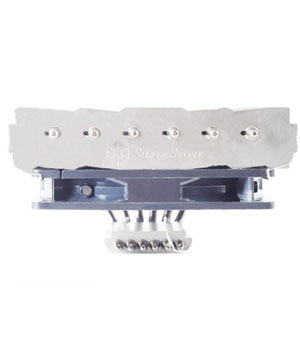

Six soldered heat-pipes

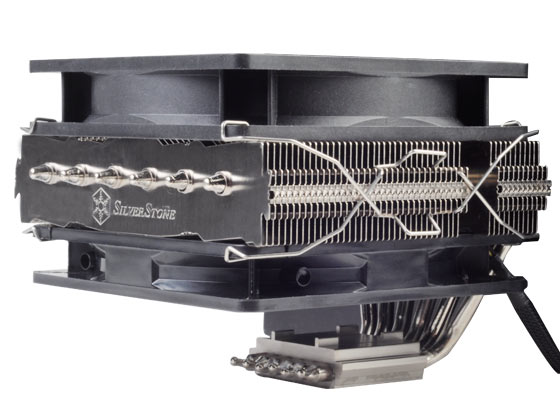

Dual fan installation (optional)

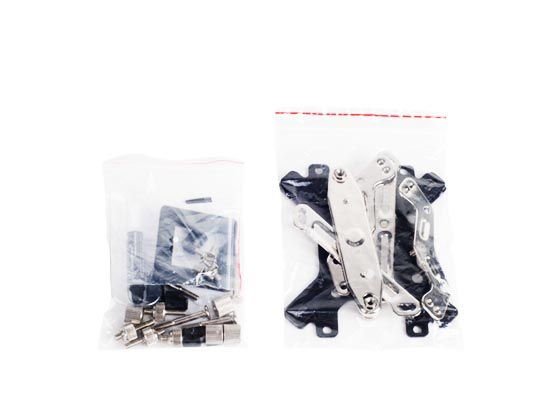

Components included
