SilverStone SG08-LITE
- Super mini footprint design with no cables and vents on four sides
- Ample space for CPU cooling (78mm in height)
- Elevated standoff for motherboard back side components
- Includes 140mm Air Penetrator fan and support entry level liquid cooling
- Supports for two 2.5” SSD/hard drives and one 3.5” hard drive
- Mini-DTX / Mini-ITX motherboard & SFX PSU compatible
- Standard-length expansion cards support (10 inches)
Product Information
| Model No. | SST-SG08B-LITE(black) | |
| -- | ||
| -- | ||
| -- | ||
| Material | Extruded aluminum front panel, steel body | |
| Motherboard | Mini-DTX, Mini-ITX | |
| Multimedia | -- | |
| Drive Bay | External | Slim slot-loading optical x 1 |
| -- | ||
| Internal | 3.5" x 1 , 2.5” x 2 | |
| Cooling System | Front | -- |
| Rear | -- | |
| Side | Oversized vents | |
| Top | 120mm/140mm/180mm fan slot | |
| Bottom | VGA exhaust divider | |
| Internal | -- | |
| Expansion Slot | 2 | |
| Front I/O Port | USB 3.0 x 2 Audio x 1 MIC x 1 |
|
| Power Supply | Support standard ATX PSU up to 160mm in length | |
| Operating system support | -- | |
| Expansion Card | Support expansion cards up to 12.2” long, width 4.84”* | |
| Limitation of CPU cooler | 147mm | |
| Limitation of PSU | -- | |
| Net Weight | -- | |

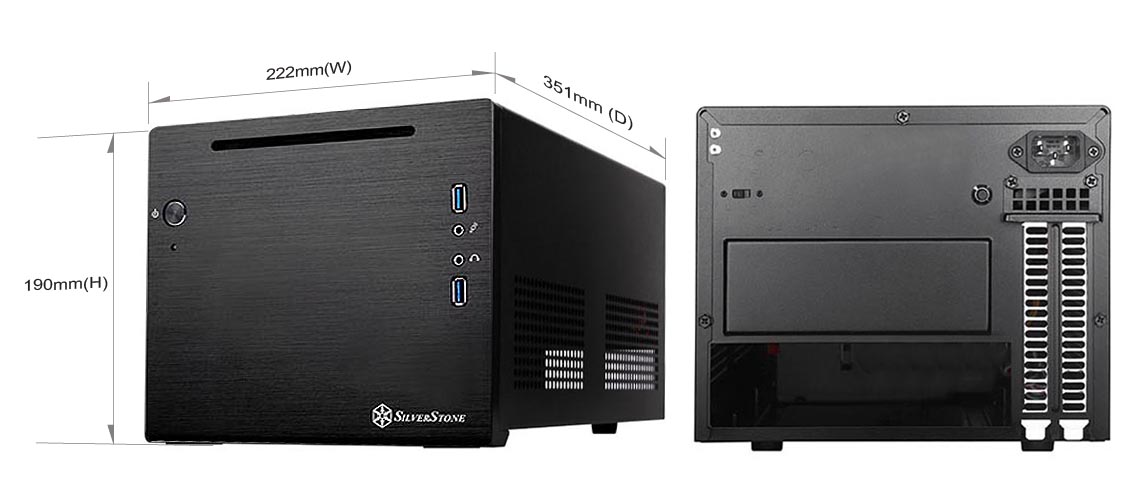

| Dimension | 222 mm (W) x 190 mm (H) x 351 mm (D), 14.8 liters | |
| Extra | -- | |
| Support VESA Mount | -- | |
| Remark |
| * To support graphics card longer than 7.25”, a non-modular PSU with maximum 140mm length is required. |

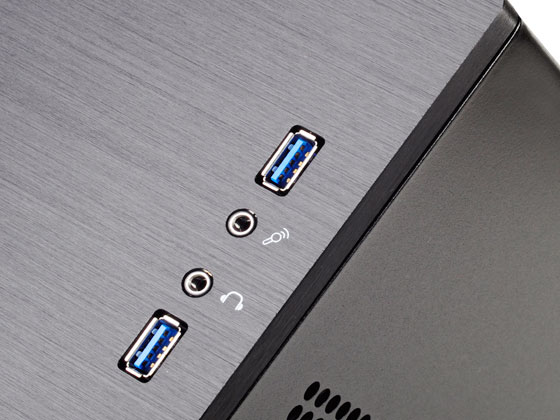

Front I/O ports

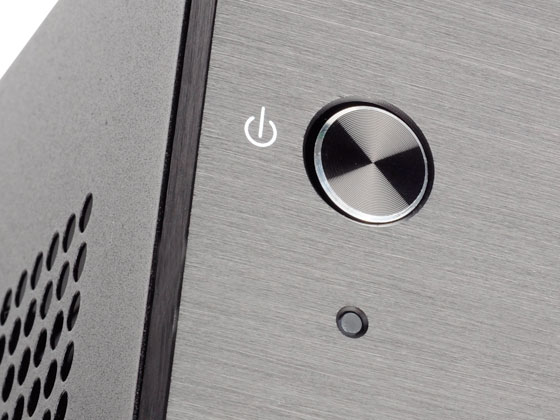

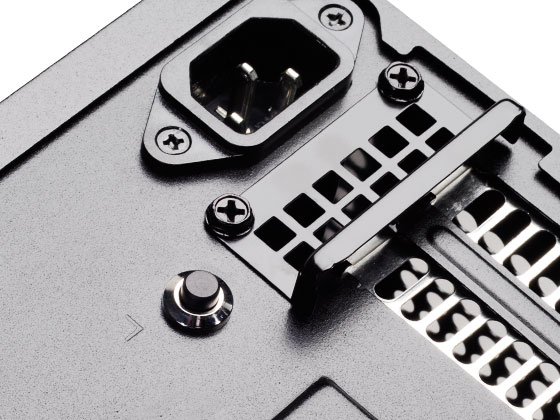

SilverStone stylish power button

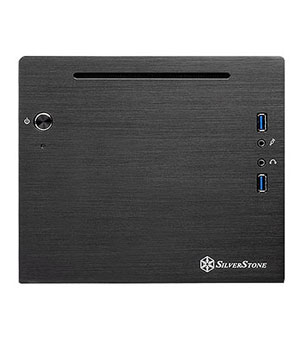

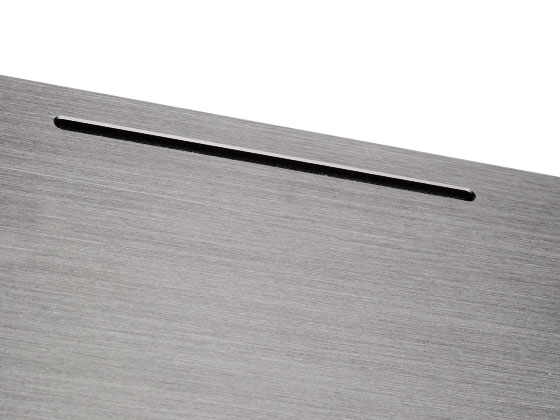

Slot-in optical drive

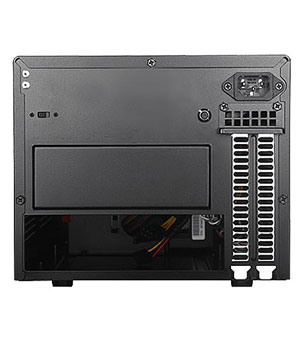

2 x PCI-E slot

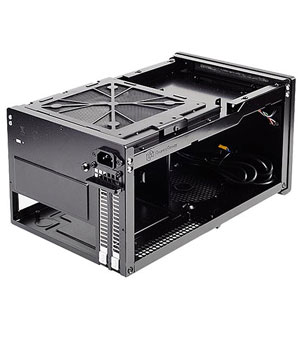

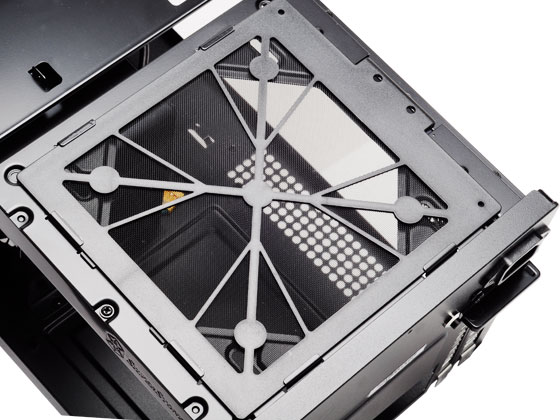

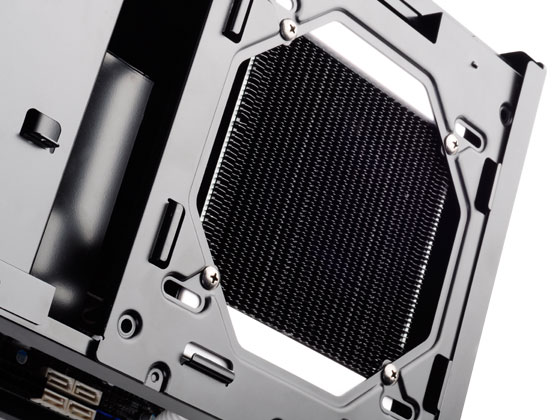

Fan bracket supports 180mm fan or 120mm/140mm fan + water cooling radiator

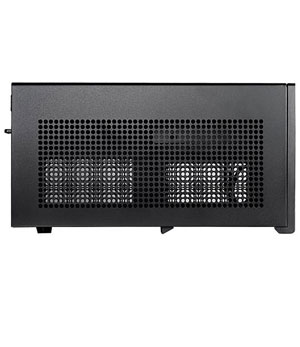

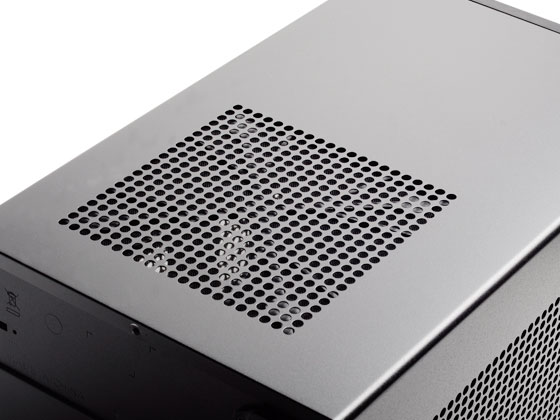

Oversized vents

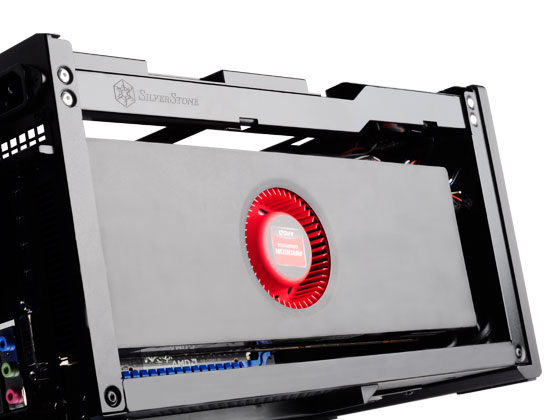

Support graphics cards up to 12.2 inches
Used with SilverStone TD03 AIO liquid cooler
