SilverStone SG13
- Supports standard-length expansion cards (10.5 inches)
- Mini-DTX / Mini-ITX motherboard & ATX PSU compatible
- Supports 120mm or 140mm single fan All-in-One Liquid Cooler
- Supports 2.5” and 3.5” hard drives

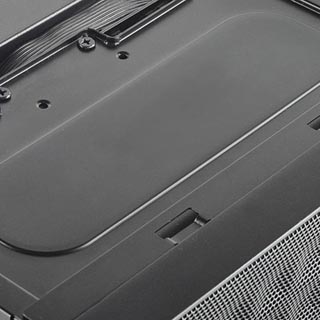

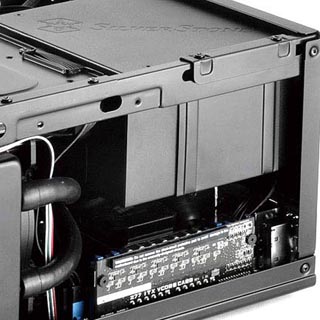

- Elevated standoff for motherboard back side components
Product Information

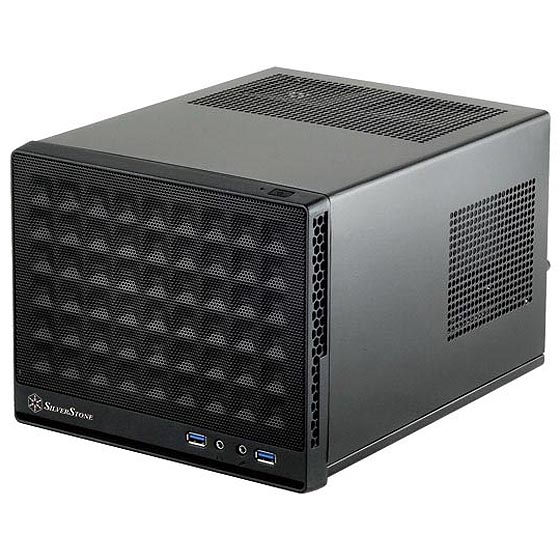

| Model No. | SST-SG13B (black, mesh front panel) | |

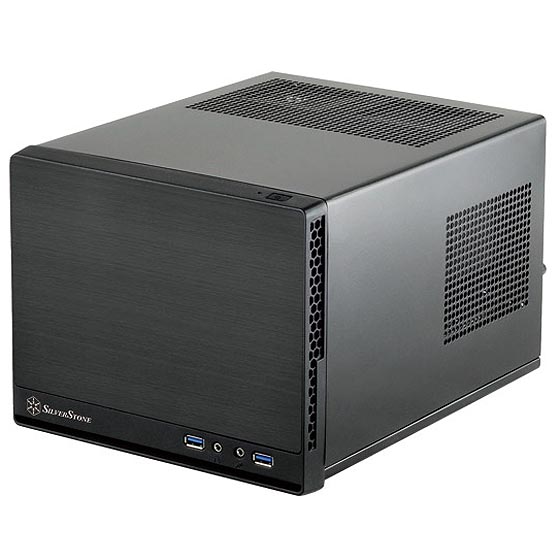

| SST-SG13B-Q (black, plastic front panel with faux aluminum finish) | ||
| Material | Mesh or plastic front panel, steel body | |
| Motherboard | Mini-DTX, Mini-ITX | |
| Drive Bay | External | -- |
| -- | ||
| Internal | 3.5” x 1 or 2.5”x2 , 2.5”x1 | |
| Cooling System | Front | 1 x 120mm/140mm fan slot compatible with radiator(option) |
| Rear | -- | |

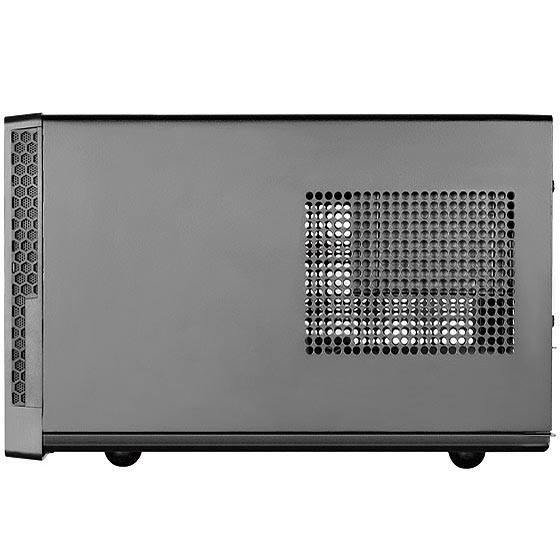

| Side | Oversized vents | |
| Top | Oversized vents | |
| Bottom | -- | |
| Internal | -- | |

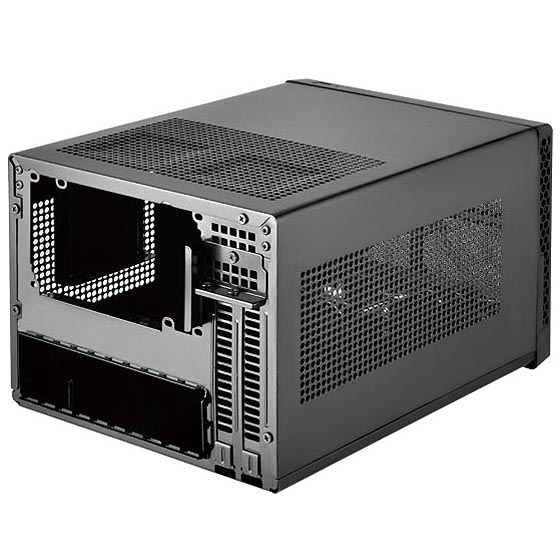

| Expansion Slot | 2 | |
| Front I/O Port | USB 3.0 x 2 audio x 1 MIC x 1 |
|
| Power Supply | Optional standard PS2(ATX) | |
| Expansion Card | Compatible up to 10.5” long, width restriction-5.11" | |
| Limitation of CPU cooler | 61mm | |
| Limitation of PSU | 150mm* | |
| Net Weight | SG13B:2.47Kg / SG13B-Q:2.43Kg | |
| Dimension | 222mm (W) x 181 mm (H) x 285 mm (D) 11.5 liters | |
| Remark |
| * Installing larger 140mm based radiator or fan will require the removal of the upper drive cage and sacrifice available room for graphics card to 9.3” minus the thickness of the radiator. * Maximum length for PSU is 150mm, we recommend 140mm due to varying connector locations on PSUs and the unique structure of SG13. |

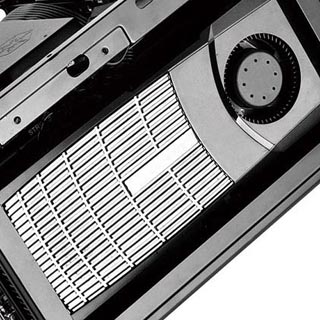

Support standard-length expansion cards (10.5 inches)
Mini-DTX / Mini-ITX motherboard & ATX PSU compatible

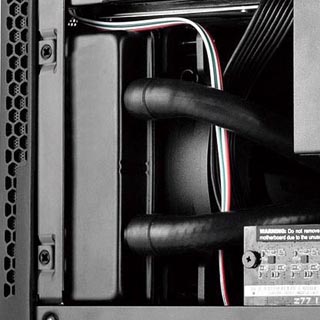

Support 120mm or 140mm single fan All-in-One Liquid Cooler
Support 2.5” and 3.5” hard drives

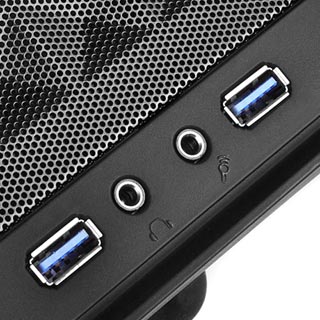

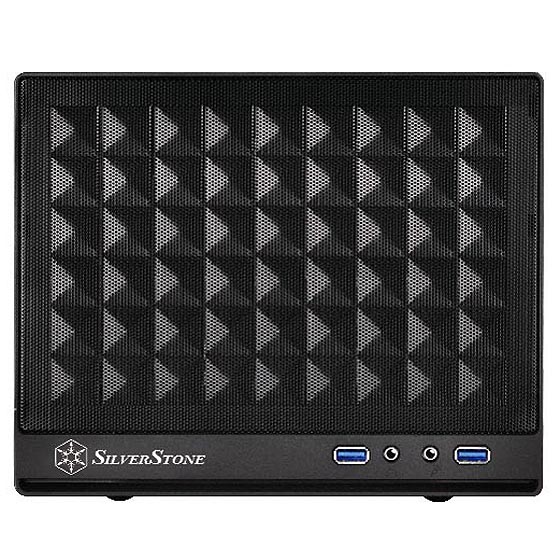

I/O ports include microphone, audio, and two USB 3.0 ports

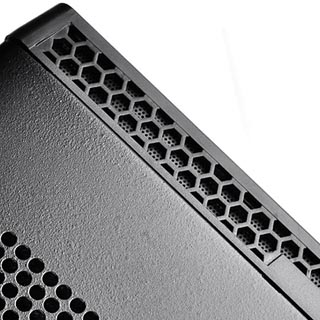

Front panel with side intakes vent

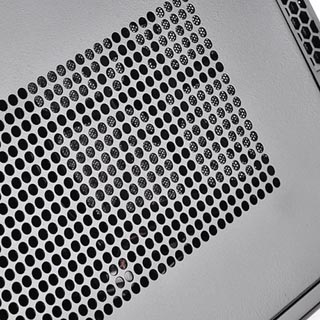

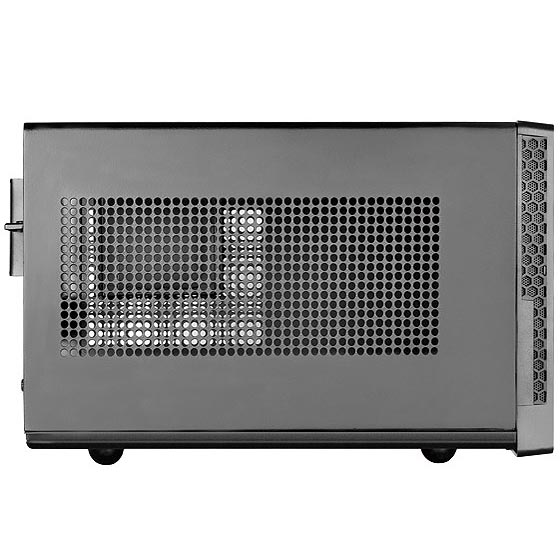

Oversized vents for graphic card

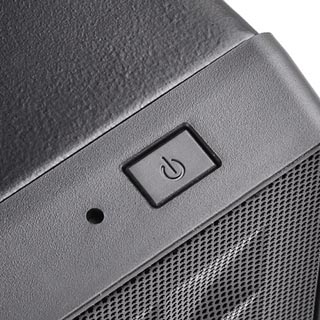

Power & Reset button
