Stardom S2F
Safety to Facilitate
S2F directly shares power from Firewire port with no any extra power requirement, and connects to all Raidon storage RAID products which are with eSATA port.

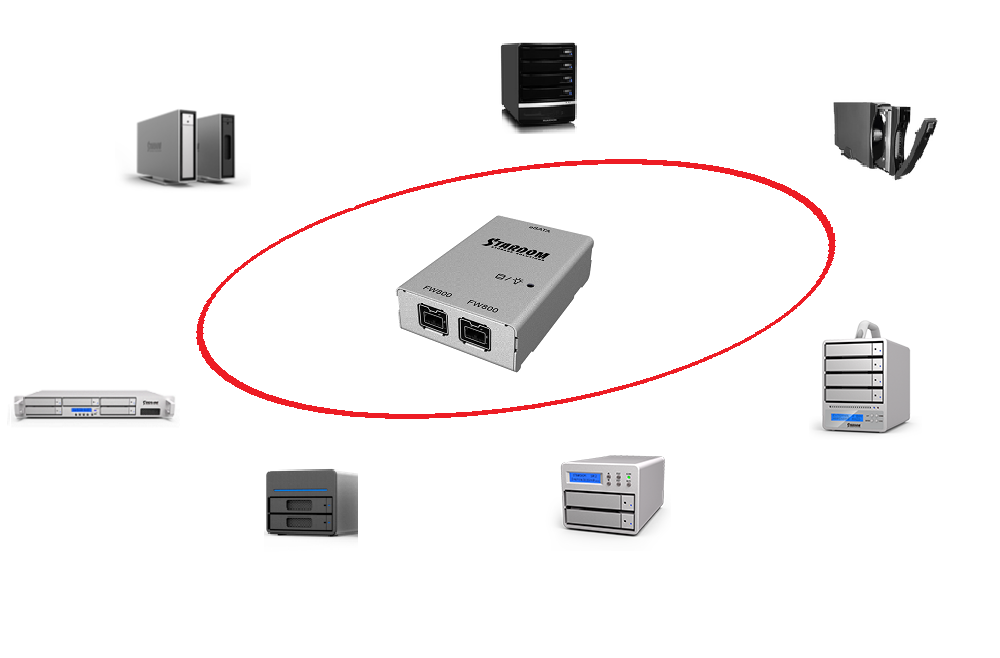

The Tiny Product extends All Your Storage Products

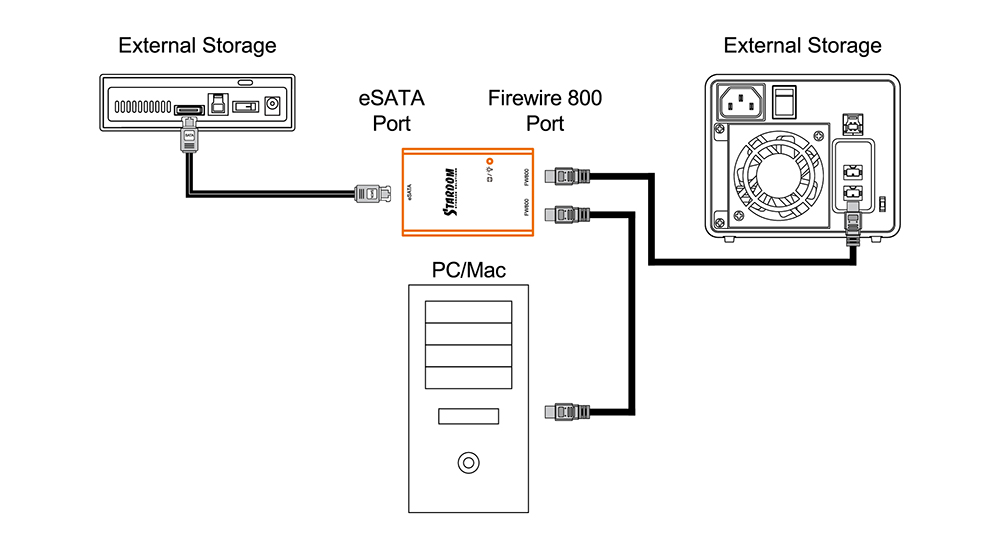

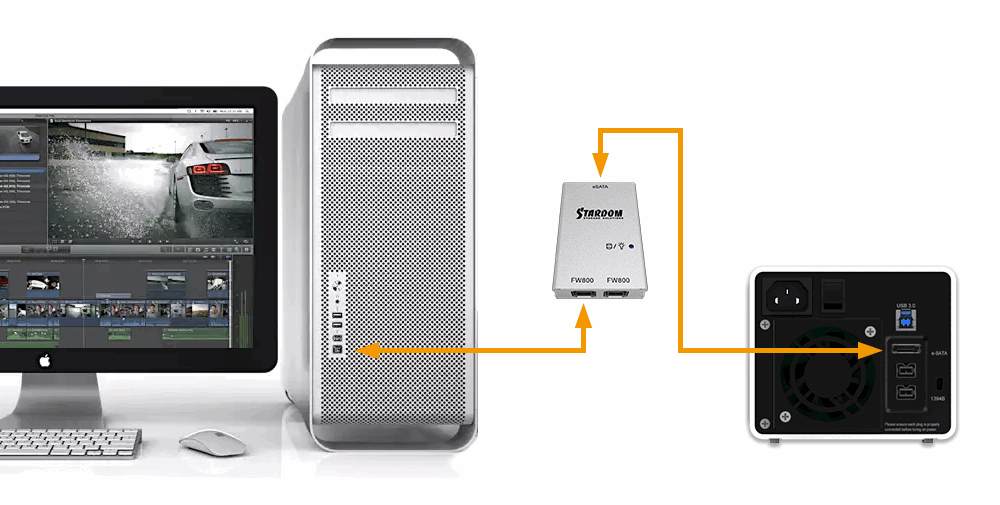

From your only Firewire Mac to connect to Non-FireWire device, S2F provides you a great flexibility to choose a good storage product from Raidon. And also, S2F could not only connect to one Non-FireWire Raidon storage product but one more storage thru a second FireWire 800 port.
With a Clear LED Indicator, S2F Keeps a Good Data Transfer Performance

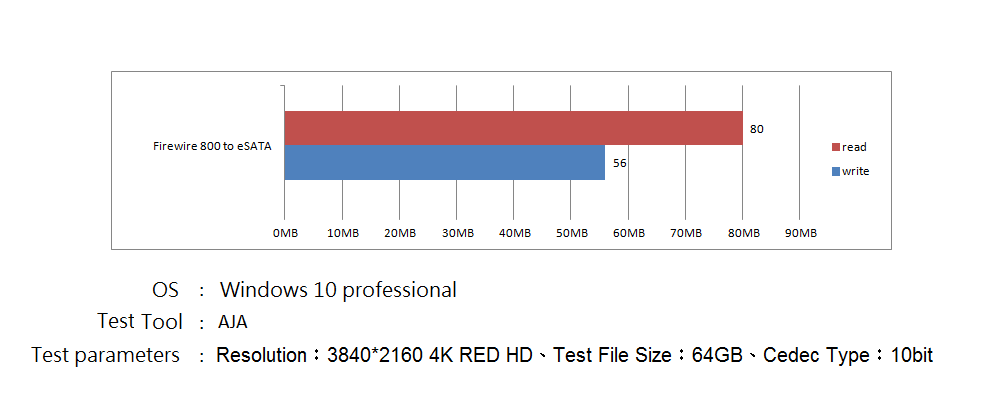

To use a S2F Adapter, you won’t lose any of that data transfer performance at all. And the LED Indicator gives you its perfect working status.
To Have a S2F Is to Own a Flexible Choice for a Good & Low-cost Raidon Storage Product

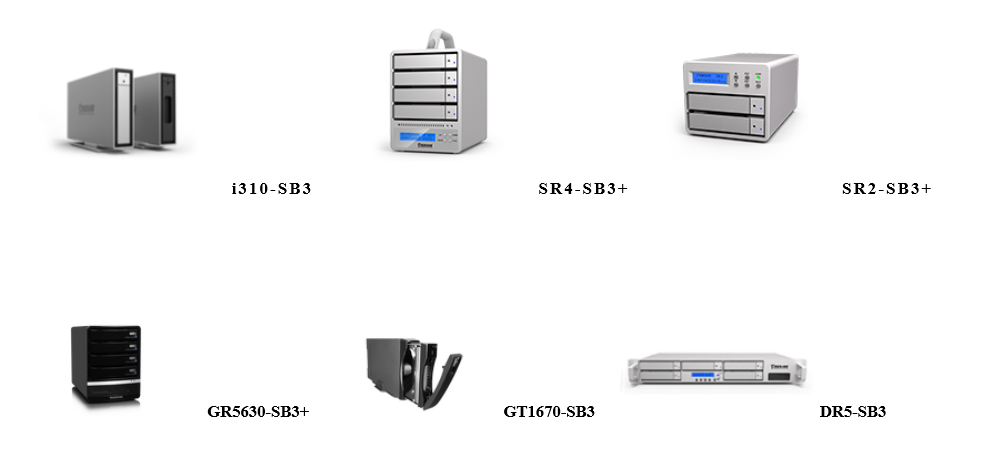

To have one S2F Adapter, you can have so many choices at Stardom and Raidon storage products down below for your Mac PC.

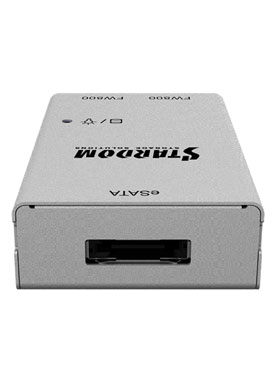

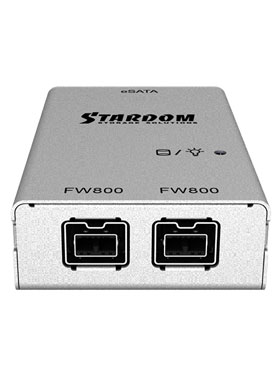

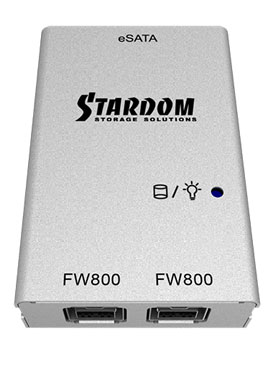

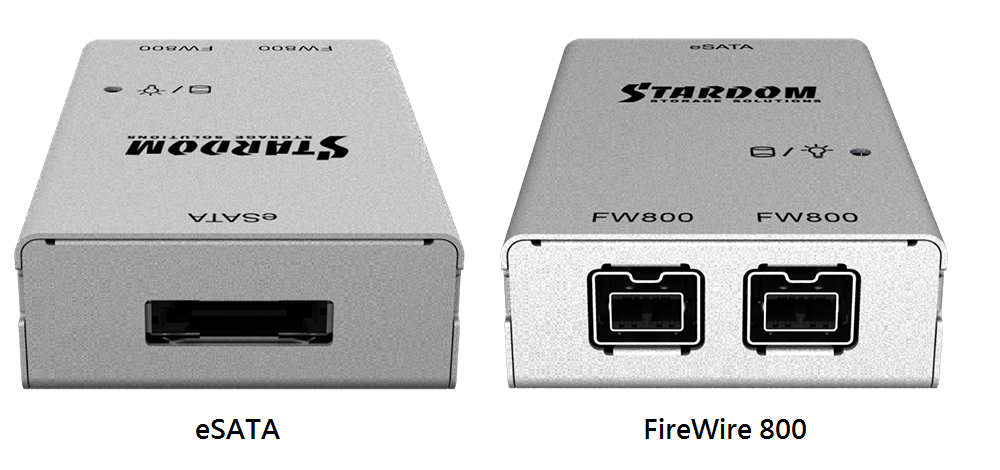

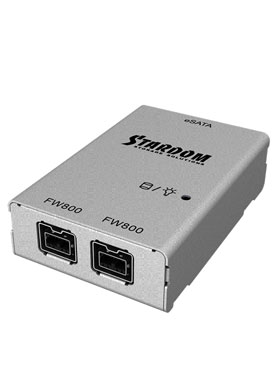

Products Views
Specification
| Model No | S2F |

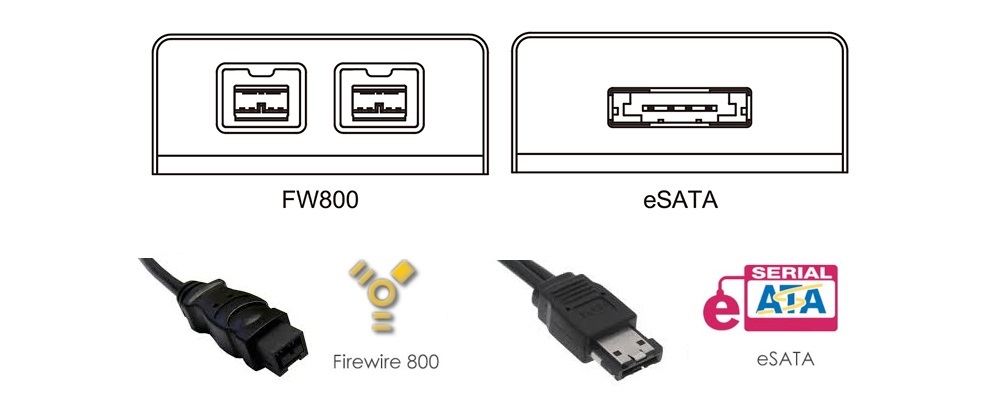

| Interface | eSATA port: One eSATA Singal 7pin Connector |
| Host Interface | FireWire Port: Two Bilingual (IEEE 1394b) Connectors |
| SATA Data Transfer Rate | 300MB/s |
| FireWire Data Transfer Rate | 800Mb/s (100MB/s) |
| Main IC Chip | JM355 |
| 1394 PHY | Ti's TSB81BA3D |
| LED Indicator | Power / Link / Access |
| Serial Connection | Yes |
| Packaging | 40 pcs per carton |
| Standard Option Parts | * S2F x 1 * Firewire 800 Cable x 1 * eSATA Cable x 1 * User Manual x 1 |
| Certification | CE & FCC |
| Dimension | 68.5mm (W) x 17.6mm (H) x 46.5mm(D) |
